RG-316 Type Coax Cable

Specification:

MIL-C-17/113

Continuous working voltage:

900V rms max

Operating temperature range:

-55°C ~ +200°C

Item

Material

Diameter

Remark

Center conductor

SPCW

0.51mm (0.012")

Strand 7/0.17

Dielectric

PTFE (Solid)

1.52mm (0.061")

Outer shield

SPC (Braid)

2.0mm (0.079")

95% Coverage

Jacket

FEP

2.5mm (0.1")

Light brown color

Item

Specification

Remark

Operating frequency

3 GHz max

Conductor resistance

8.41 Ohm/100ft max

at 20°C

Dielectric resistance

1000 MOhm/km min

at 20°C

Test voltage

2000 V rms

1 min

Velocity of propagation

69.5% nom

Capacitance

32 pF/ft max

Characteristic impedance

50 ± 2 Ohm

Approx. weight

16.0 kg/km

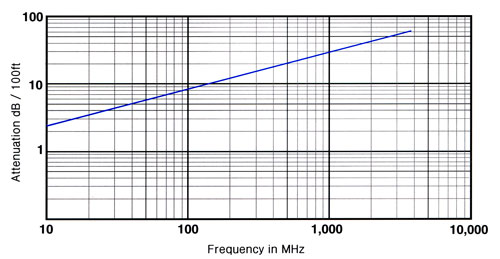

Nom. attenuation

5.4 dB/100ft (0.18 dB/m)

at 50 MHz

7.7 dB/100ft (0.25 dB/m)

at 100 MHz

11.1 dB/100ft (0.36 dB/m)

at 200 MHz

16.1 dB/100ft (0.53 dB/m)

at 400 MHz

18.1 dB/100ft (0.59 dB/m)

at 500 MHz

20.0 dB/100ft (0.66 dB/m)

at 600 MHz

23.5 dB/100ft (0.77 dB/m)

at 800 MHz

25.0 dB/100ft (0.82 dB/m)

at 900 MHz

26.5 dB/100ft (0.87 dB/m)

at 1 GHz
